| 1000m Reflectorless Range |
 |
Dual-Axis Compensation |
|
5-10kmLong Distance Measurement | |
Bluetooth Communication with external device |
       |
Measure & Setout on App, More Productive & Smarter! Ksurvey App allows you to import CAD basemap and stakeout it, without input point coordinates one by one. Online map can be displayed with CAD map too. Point Stakeout and Line stakeout now is in graphic display. It brings more ease and convenience to your work.
|
| Map & Draw on Android App,
Save Time Outdoor & Indoor!
|
      |
 |
Measures Longer and longer, Improvement Never Settles! How could we lift the ranging cabability to a new level of 1000m? The three key factors are “Dual-light Source Distance Measuring technology”, optimization of the signal-to-noise ratio, a more stable objective lens system. Video: 1000m Non-prism measurement in cloudy weather https://www.youtube.com/watch?v=bpnFW2EdxVY
|
| A New Step to be More Accurate,
Innovation Never Stops!
Every hard working surveyor deserves a higher precision than before. Four innovations have been realized in our newly designed optical system to achieve this goal: “Focal Length Compensation Mirror”, “Fully sealed emitting laser circuit”, “Less reflectors in optical part”, “the 4th Generation EDM CPU”. |
 |
 |
Practical Survey Program
Various of surveying programs onboard allow surveyors to complete their tasks directly in the field: angle offset, angle repetition, dual-distance offset, coordinate measurement, REM, MLM, Staking out,area calculation, Road Design, etc. Video:Â https://www.linkedin.com/pulse/operation-video-kts-442r6lc-andy-lau/
|
| Compatible with FieldGenius

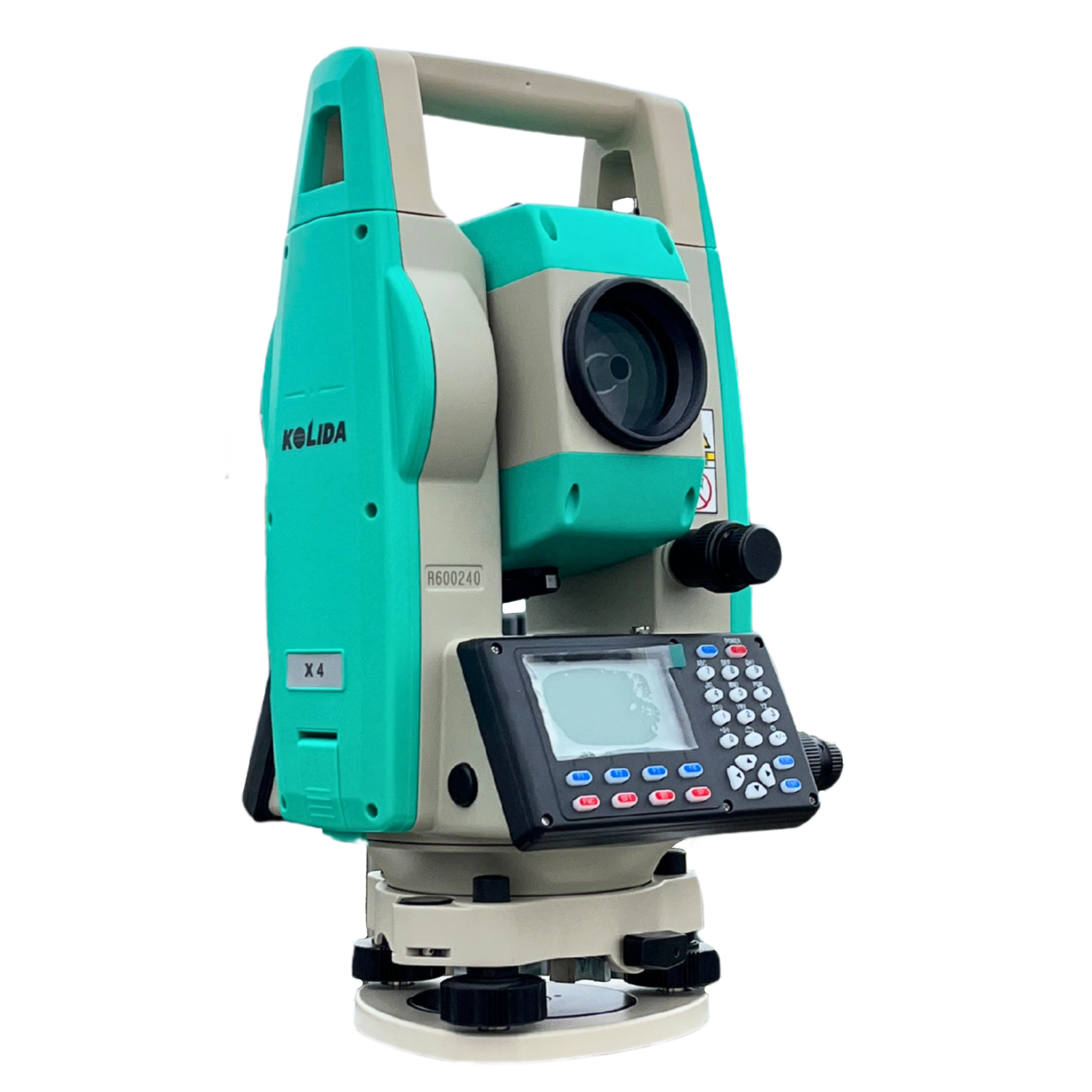

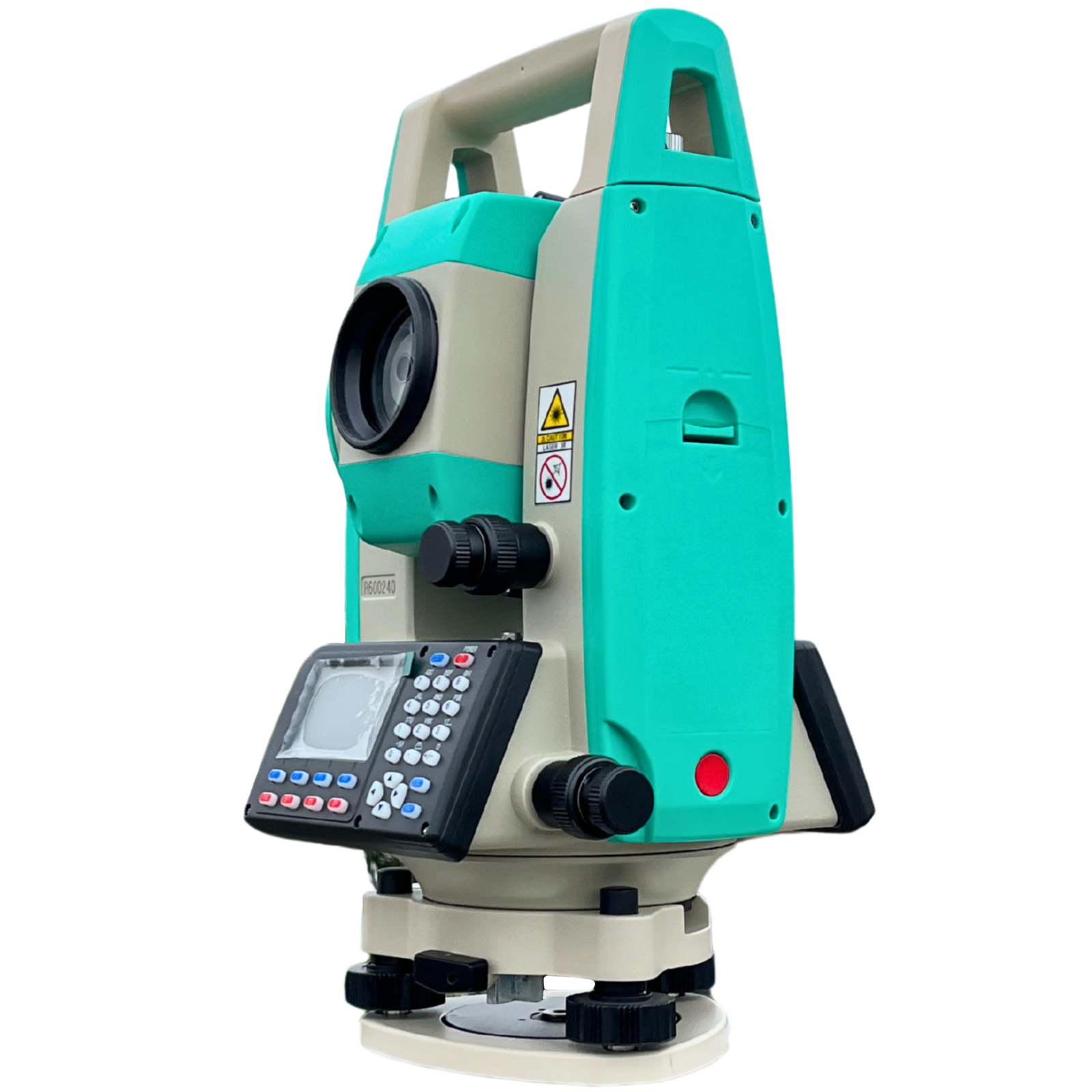

Working X4 with graphic mapping software such as Microsurvey FieldGenius will optimize your productivity. |
 |
 |
Convenient Data Transfer
X4 supports USB/ Bluetooth connection. Special data transmission and editing software can quickly transfer data and save time. User also can directly download measurement data from total station to USB flash memory disk, raw data/ coordinates/ .dxf all download in one time. Video:Â https://www.youtube.com/watch?v=eN-lMAkm6kM
|
| Bluetooth
External device can be linked to total station, through the Bluetoothâ„¢ wireless connection. Then users can use their PC/ tablet/ Data Controller with X4 total station and run mapping software to collect data. |
 |
| Distance Measurement | ||
| Measurement Range1 prism:          5000m3 prism:          8000-10000mReflectorless:      1000/ 1500m | AccuracyPrism:         ±(2+2ppmx D)mmReflectorless:    ±(3+2ppmx D)mm | Measuring Time0.1 – 1.5s |
| Atmosphere CorrectionManual Input | Prism Constant CorrectionManual Input | |
| Â | ||
| Angle Measurement | ||
| Measurement MeAbsolute Encoding |
Accuracy2″ |
Minimum Reading1″/ 5″ optional |
| CompensatorDual Axis Liquid-electricRange ±4′, Accuracy 1″ | ||
| User Interaction | ||
| Operation SystemDOS | Color ScreenN/A |
Touch ScreenN/A |
| KeyboardFull Alphanumeric keys with backlight | Trigger KeyN/A | Bluetooth & wifiBluetooth |
| Internal Storage12Mb, 120,000 points | External Storage
USB Flash Memory Disk |
|
| Working Capability | ||
| ProgramCoordinate measurement, setout, area, road design… | Graphic Display N/A |
Laser Pointer & Laser PlummetYes |
| Endurance12 hours | Setout Guide Light
N/A |
Camera Function
N/A |
