| 300m Distance Measurement |
 |
Axis Setout Two Methods to Choose |
|
Full Numeric Keyboard with Functional Keys |
|
Power Saving Long working hours |
|
|
SAVE INVESTMENT ON EQUIPMENT |

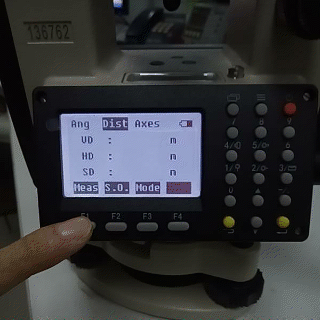

This theodolite is able to measure 300m distance by prism, with an accuracy of 3mm+2ppm. Distance result can be displayed in SD/ HD/ VD. It is more powerful and accurate than disto and traditional tapes. |
 |
SAVE LABOR COST |

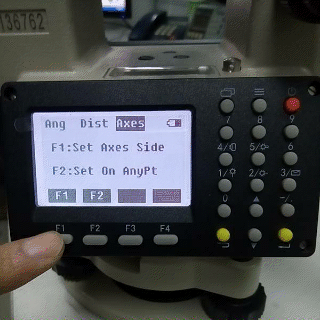

Thanks to the onboard Axis-setout program, now two surveyors are capable to do four men’s work. Two setout methods to be choosed according to users’ need. |
 |
USERÂ EXPERIENCE IS BETTER |
Two full numeric keyboards allow user to realize very quick data input.

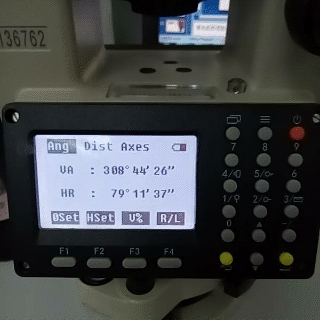

With only one button press, user can switch work mode between Angle/ Distance/ Setout. Laser Plummet/ Laser Pointer/ E-bubble/ Back Light also can be activate by one button press. |
 |
LONG
WORKINGÂ HOURS |
Energy-saving program and the newest lithium battery help this theodolite to work for 8 hours distance measurement and setout. |
| Distance Measurement | ||
| Measurement Range1 prism:          300m | Accuracy±(3+2ppmx D)mm | Measuring TimePrism:         0.35 – 1.5s |
| Atmosphere CorrectionManual Input | Prism Constant CorrectionManual Input | |
| Â | ||
| Angle Measurement | ||
| Measurement MeAbsolute Encoding |
Accuracy2″ |
Minimum Reading1″ |
| CompensatorSingle Axis Liquid-electricRange ±3′, Accuracy 3″ | ||
| User Interaction | ||
| Operation SystemDOS | Color ScreenN/A |
Touch ScreenN/AÂ |
| KeyboardFull Numeric with backlight | Trigger KeyN/A |
Bluetooth & wifiN/A |
| Internal StorageN/A | External Storage
N/A |
|
| Working Capability | ||
| ProgramAxis Setout | Graphic Display N/A |
Laser Pointer & Laser PlummetYes |
| Endurance8 hours distance measurement | Setout Guide Light
N/A |
Camera Function
N/A |
